NOTE: AC accessories will be added soon. Items below will soon be moved.
Nintendo®

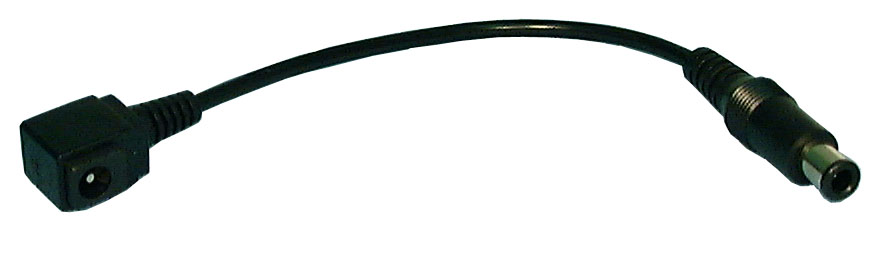

Power Adaptor Cord. The male connector on th
is cord mates with the power
jack on Nintendo games. The other end mates with the power plug found on
numerous, miscellaneous power supplies; this makes replacing a power supply
easier. Click on the thumbnail photo to view an enlargement.
Power Adaptor Cord Philmore part number 298
DC POWER CORD ADAPTORS, 6 foot length.
This is a series of six foot cords with a coaxial
style plug on one end and a jack on the other. The purpose is to pick a cord
that has a plug that will mate with your equipment which also has a jack that
can be connected to a power supply that you already have on hand. Cuts down on
the number of AC-DC adaptors (power supplies) that you need and makes travel
with electronic accessories a bit easier.
| Part no. | Description |
| 278 | 0.7mm x 2.35mm DC Plug to no. 257 jack size |
| 280 | 0.7mm x 2.35mm DC Plug to no. 258 jack size |
| 282 | 0.7mm X 2.35 mm DC plug to no. 501VS jack size |
| 284 | 1.7mm X 4.0 mm DC plug to no. 257 jack size |
| 286 | 1.7mm X 4.0 mm DC plug to no. 258 jack size |
| 288 | 1.7mm X 4.0 mm DC plug to no. 501VS jack size |
| 290 | 1.7mm X 4.75mm DC plug to no. 257 jack size |
| 292 | 1.7mm X 4.75mm DC plug to no. 258 jack size |
| 294 | 1.7mm X 4.75mm DC plug to no. 501VS jack size |

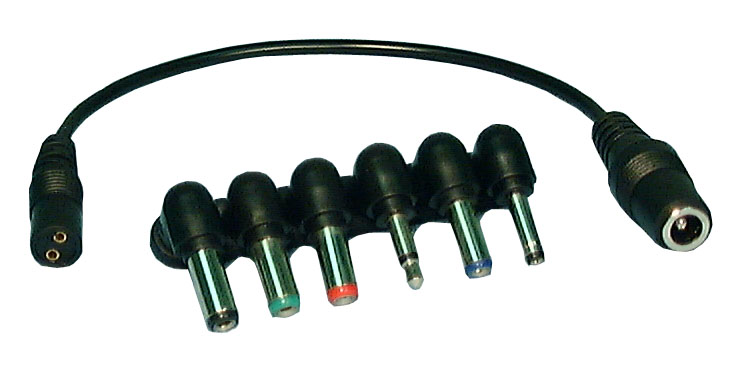

6 in 1 DC Power Adaptor Connector Set no. 296
A majority of the power
supplies (AC/DC adaptors) supplied with your various equipment have a 2.1mm
inside diameter by 5.5mm outside diameter plug. The 6in1 set will connect to
that rather universal size and adapt it to the six most common plugs. The plug
sizes are listed below. Polarity may be reversed, of course.
Plug sizes: (5.5 x 2.5mm) (5.5×2.1mm) (5.5×1.5mm) (5.0×2.1mm)
(5.0-x 2.5mm) and (3.5mm)
